self-taught
Docker is a platform for developing, shipping, and running applications in isolated environments called containers.
Containers are isolations of application processes, not virtual machines, so they have less overhead.

Docker Architecture

Docker uses a client-server architecture:

Docker client: command line interface for interacting with Docker
docker host: runs the docker daemon (dockerd)
docker daemon: manages docker objects (images, containers, networks, volumes)
docker registry: stores docker images (docker hub os the default public registry)

Docker objects

image: read only templates with instructions for creating containers
container: the image when it is running: runnable instance of an image
engine: the software that executes commands for containers, can be clustered together
registry: stores distributes and manages docker images
control plane: management plane for container and cluster orchestration
volumes: persistent data storage outside containers
networks: communication channels between containers
dockerfile: script with instructions to build an image

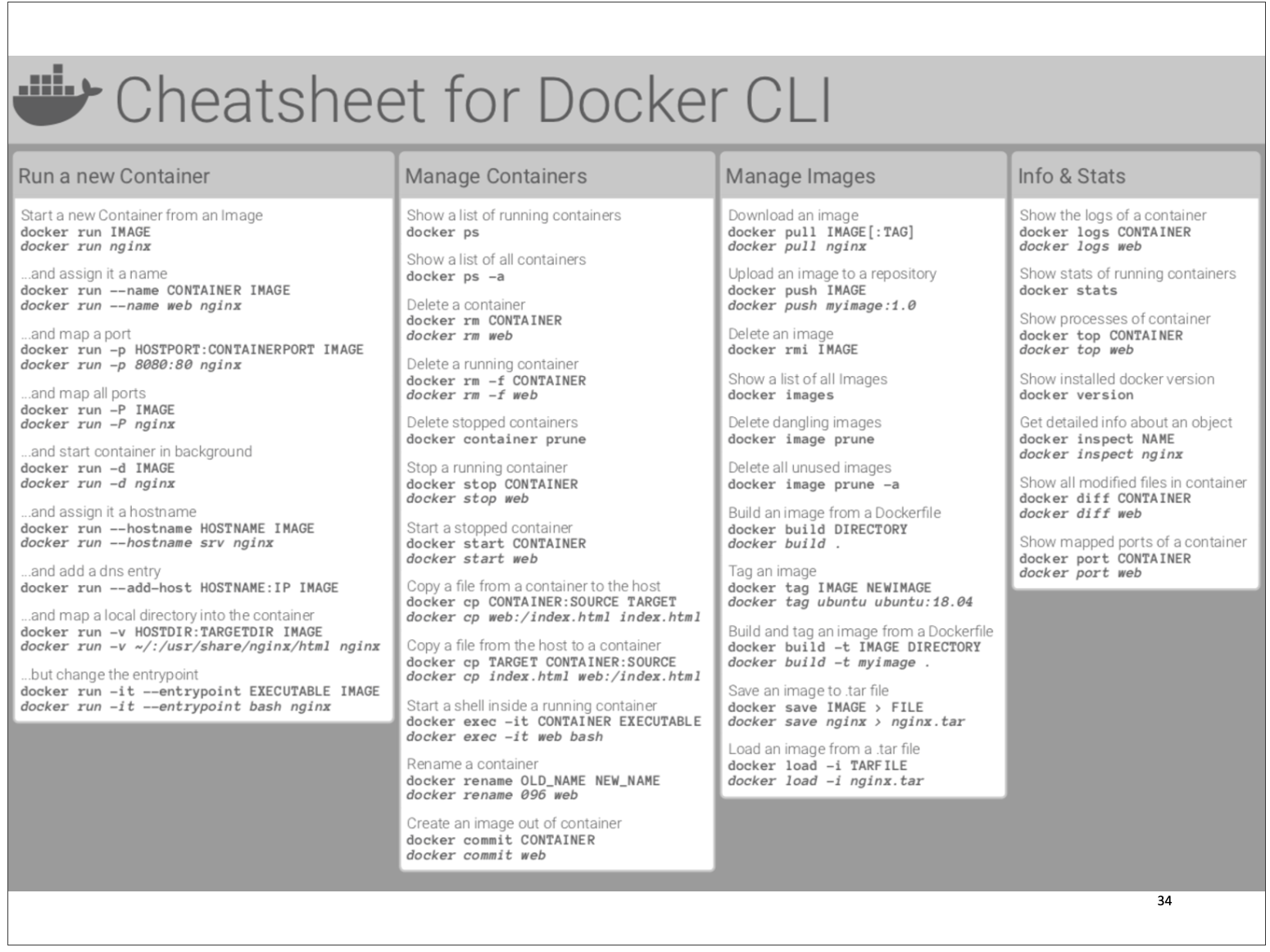

Cheatsheet

Commands

docker pull [OPTIONS] NAME[:TAG|@DIGEST]

docker build [OPTIONS] PATH | URL | -

docker start [OPTIONS] CONTAINER [CONTAINER...]
	# start one or more stopped containers
	-ai # interactive, attach stdout/stderr

docker run [OPTIONS] IMAGE [COMMAND] [ARG..]
	-d # run in detached mode (background)
	-p 8080:5000 # map host port 8080 to container port 5000
	-v $(pwd)/data:/app/data # mount a volume
	-e DEBUG=true # set enviroment variables
	--name NOME # give the container a name
	--rm # remove the container when it exits

docker top CONTAINER_NAME
docker logs CONTAINER_NAME
	-f # continues following the output of logs

docker rm CONTAINER_NAME
docker container prune # removes every stopped container

Container Communication

Container networking let containers to connect to and communicate with each other, or to non-Docker workloads.

Containers have networking enabled by default, and they can make outgoing connections.

A container has no information about what kind of network it’s attached to, or whether their peers are also Docker workloads or not.

A container only sees a network interface with an IP address, a gateway, a routing table, DNS services, and other networking details.

To make a container accessible to other containers, we can enable inter-container communication by connecting the containers to the same network.

Docker Networks

bridge: default network for containers on the same hosts
host: use host’s networking directly
overlay: for containers across multiple docker hosts
macvlan: assign a MAC address to containers

# Create a network
docker network create mynetwork
# Run container on network
docker run --network=mynetwork myapp:latest
# List networks
docker network ls
# Inspect network
docker network inspect mynetwork

Docker Image

Docker images are built from a Dockerfile and a “context”.

A build’s context is the set of files located in the specified PATH or URL. The build process can refer to any of the files in the context.

The URL parameter can refer to three kinds of resources: Git repositories, pre-packaged tarball contexts, and plain text files.

docker image build [OPTIONS] PATH | URL | -
	# -t: tag
	# PATH: Context path

Dockerfile

# Use an official Python runtime as a parent image
FROM python:3.12-slim
# Set the working directory
WORKDIR /app
# Copy requirements and install dependencies
COPY requirements.txt .
	# source, WORKDIR/dest
RUN pip install --no-cache-dir -r requirements.txt
# Copy the current directory contents
COPY . .
# Make port 5000 available
EXPOSE 5000
# Define environment variable
ENV NAME World
# Run app.py when the container launches
CMD ["python", "app.py"]

Directives

FROM: this sets the base image for the subsequent instructions, this must be the first instruction
WORKDIR: sets the workind directory for subsequent RUN, CMD, ENTRYPOINT, COPY, ADD commands during the build
COPY: used to copy files and directories from the host system to the image during build
RUN: used to run commands to the image during build time
ADD: similar to copy but it can also copy from URLs and automatically unpack compressed archives
EXPOSE: indicates the ports on which the container will listen for connections. This instruction doesn’t publish the port, it is just documentation
ENTRYPOINT: allows to configure a container that will run as an executable: ENTRYPOINT["executable","param1",...]
CMD: can be used to pass additional arguments to ENTRYPOINT. Will be overridden by arguments passed to docker run.
ENV: used to set enviroment variables for specfic service of container. Allows for multiple <key>=<value> pairs
VOLUME: creates a mount point with the specified name and marks it as holding externally mounted volumes from native host or other containers: VOLUME ["/data"]
.dockerignore file: used to exclude files or folders to not include in the docker build.

Data Persistance

Methods to make data persistent even after deleting its container.

Bind mounts

A file or directory on the host machines gets mounted into a container.

docker run --mount type=bind, src=path, dst=path ...

Volumes

When using a volume a new directory is created within docker’s storage directory on the host machine and docker manages the directory’s contents.

These are easier to back up or migrate than bind mounts.
easily shared among containers
volumes drivers let you store volumes on remote hosts or cloud providers, encrypt the contents or add functionality

docker volume create my-volume

docker run -v /hostpath:/containerpath[:ro] ...
	# mounts hostpath to containerpath
	# [:ro]: read onlydo

Docker Compose

With compose you can create a YAML file to define the services and with a single command, can spin everything up or tear it all down.

Each of the containers is run in isolation but can interact with each other when required. Docker Compose defines a multi-container application in a single file.

Structure of a docker-compose file:

version
services
- build
- image
- enviroment
- ports
volumes
networks

example:

version: "3.7"
services:
	app:
		image: node:12-alpine
		command: sh -c "yarn install && yarn run dev”
		ports:
			- 3000:3000
		working_dir: /app
		volumes:
			- ./:/app
		environment:
			MYSQL_HOST: mysql
			MYSQL_USER: root
			MYSQL_PASSWORD: secret
			MYSQL_DB: todos
	mysql:
		image: mysql:5.7
		volumes:
		- mysql-data:/var/lib/mysql
			environment:
			MYSQL_ROOT_PASSWORD: secret
			MYSQL_DATABASE: todos
volumes:
mysql-data:

services:
	web:
		build: .
		depends_on:
			-db
			-redis
	redis:
		image: redis
	db:
		image: postgres

Commands

# Start services defined in docker-compose.yml
docker-compose up
# Run in detached mode
docker-compose up -d
# Stop services
docker-compose down
# Stop services and remove volumes
docker-compose down -v
# View logs
docker-compose logs
# Execute command in a service container
docker-compose exec web python manage.py migrate

dcoker-compose stop # does not remove the containers
docker-compose start # containers need to have already been made

docker-compose ps

---

build Build or rebuild services
help Get help on a command
kill Kill containers
logs View output from containers
port Print the public port for a port binding
ps List containers
pull Pulls service images
rm Remove stopped containers
run Run a one-off command
scale Set number of containers for a service
start Start services
stop Stop services
restart Restart services
up Create and start containers

Docker Security

Scan images for vulnerabilities (docker scan)
- docker scout quickview/cves/sbom
Use minimal base images (alpine, slim)
Don’t run containers as root
Limit container capabilities
Use read-only filesystems where possible
Sign images with Docker Content Trust
Apply resource limits
Use security scanning tools (Trivy, Clair)
Keep Docker engine and images updated
Implement proper network segmentation

User privileges

Containers can be run as non-root by creating a user inside the image and using it with the USER directive.
In alternative, it can be specified at runtime (note that the image has to be prepared to run as non-root anyway).

# Create a user in the Dockerfile
RUN groupadd -r appuser && useradd -r -g appuser appuser
USER appuser
# Or specify user at runtime
docker run --user 1000:1000 image_name

Limit container capabilities

By default docker enables every capability.

# Drop all capabilities and add only needed ones
docker run --cap-drop=ALL --cap-add=NET_BIND_SERVICE image_name
# Run with read-only filesystem
docker run --read-only image_name

Container Isolation

# Docker Compose example
services:
	frontend:
		networks:
			- frontend
backend:
	networks:
		- frontend
		- backend
database:
	networks:
		- backend
networks:
	frontend:
	backend:
		internal: true # Not exposed to outside world

Resource Limits for containers

# Memory and CPU constraints
docker run --memory=2g --cpus=2 image_name

# With Compose
services:
	ml-api:
		deploy:
			resources:
				limits:
					cpus: '2'
					memory: 2G

Multistage Dockerfile

OLD

docker system prune --force should delete stupidly big files popping out of god-damn-nowhere.

disk image location: /Users/davidesqueri/Library/Containers/com.docker.docker/Data/vms/0/data

qui c’è docker.raw che è enorme e contiene tipo tutto quello che serve a docker, era 1.1tb poi ho ridotto la disk size di docker da 1tb a 8gb e adesso è 34gb, ma 0gb on disk.: /Users/davidesqueri/Library/Containers/com.docker.docker/Data/vms/0/data

Le immagini costruite vengono salvate qua su macos:
~/Library/Containers/com.docker.docker/Data/vms/0/
Nota: non c’è una cartella “linux-x86-env” visibile nel filesystem — Docker gestisce tutto dentro un’immagine virtuale (una specie di disco interno del suo ambiente Linux).

Puoi visualizzare dove e quanto spazio occupano le immagini docker con:
docker system df

docker volume ls
docker volume inspect volumeName
"CreatedAt": "2025-10-19T15:34:06+02:00",
        "Driver": "local",
        "Labels": null,
        "Mountpoint": "/var/lib/docker/volumes/vscode/_data",
        "Name": "vscode",
        "Options": null,
        "Scope": "local"

docker system df
docker image ls
REPOSITORY       TAG       IMAGE ID       CREATED         SIZE
myapp            latest    a1b2c3d4e5f6   2 days ago      300MB
ubuntu           latest    123456789abc   3 weeks ago     77MB
# docker images instead are stored inside VM (/var/lib/docker)

delete images, containers, volumes

# Use the IMAGE ID or repository:tag
docker rmi imageID
docker rmi -f ...
docker rmi myapp:latest

# to delete every image:
docker rmi -f $(docker images -q)

# to delete docker unused data:
docker system prune
	-a # toglie immagini dangling
	-a --volumes # toglie anche volumes

# to delete volume
docker volume rm nome
# to delute unused volumes
docker volume prune

docker container ls -a
docker container rm nome

docker run

man docker-run

docker run -v hostDir:containerDir

docker build

man docker-build

docker build PATH | URL | -

docker build -t tagDaDare

Docker Desktop

Disk image location:
/Users/davidesqueri/Library/Containers/com.docker.docker/Data/vms/0/data
